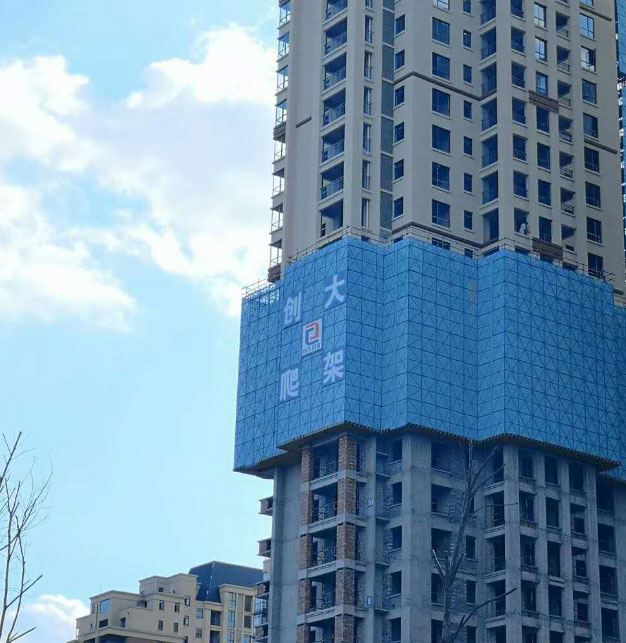

The new building climbing frame electric hoist uses a digital climbing frame control system, using computer technology and sensor telemetry technology to collect the gravity signal and displacement signal of the lifted scaffold through the computer, comprehensively analyze and make corresponding processing, and realize the lifting and lowering of the scaffold. Real-time monitoring and automatic control of the entire process of unloading reduces the amount of scaffolding materials and the workload of loading and unloading, which greatly reduces costs; at the same time, the entire scaffolding can be lifted freely, quickly, accurately and safely, thereby effectively ensuring the construction High quality. Features of this system: 1. The new building climbing frame electric hoist uses a touch screen as a human-machine interactive user interface, full Chinese menu, simple and intuitive, the control status is clear, abandoning the traditional keyboard and mouse, more suitable for the construction site operating environment, of course You can also plug in the mouse and keyboard to make the operation more flexible. 2. The new building climbing frame electric hoist can control up to 30 extensions at the same time, real-time monitoring of the working status of each extension, and various work instructions can be issued to a group of extensions or an extension. The control is flexible, timely, and highly accurate. Meet the needs of actual work. The main data sampled by this system is the gravity data and displacement data of the machine position. The main objects of control are three-phase AC motors. Notes on the use of electric hoists for building group cranes: 1. The three-phase power supply of the new building climbing frame electric hoist uses three phases Five-wire system, wire diameter is 10mm2 standard copper wire, zero wire and ground wire are 4mm2 standard copper wire. The grid voltage should meet the following requirements: three-phase AC380V +10%/-15%. 2. When using the new type building climbing frame electric hoist, it must be grounded, the grounding resistance is less than 10Ω. The control cabinet itself should also be reliably grounded. 3. The new building climbing frame electric hoist power line has three groups of outlets, each group is A, B, C three-phase and grounding wire PE, the wiring is 4mm2 standard copper wire, and each group can carry 10 stations. Two performance advantages 1. The climbing frame electric hoist has the characteristics of compact structure, convenient use, reliable braking and simple maintenance; 2. The climbing frame electric hoist has the characteristics of slow lifting speed, light body weight, high hardness of the machine parts and little wear. ; 3. Longer service life.
4. The electric hoist of the climbing frame retains the characteristics of light and convenient hand chain hoist, and the manual operation of the hand hoist is improved, and the motor is used to work, which improves the lifting speed and greatly enhances the work efficiency; 5. The electric hoist of the climbing frame is integrated The advantages of electric hoist and hand hoist are all in one, using disc brake motor to do work, driving speed reducer to reduce speed; 6, the application field is widely used in various industries of processing workshops, warehouses, docks, and various modern production lines , Assembly line. It is more flexible, fast, safe and convenient to use in a workplace with a small space. It is especially suitable for the climbing frame in the field of construction engineering, the lifting of climbing molds, and the group hanging of large oil tanks.
